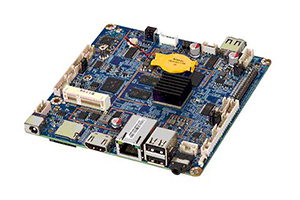

NI-RK3288
Processor
Onboard ARM RK3288 CPU（四核Cortex-A17，主频最高达1.8G）
Chipset
System Memory
Onboard 2G DDR3 Memory（64bit，Max.2G)）
Graphics
ARM Mali-T764 HDMI+LVDS（1920*1080）
Network Controller
1000M LAN + Onboard WiFi Moudel
Rear I/O Ports
*1×DC_IN 12V
*1×TF Card Reader
*1× SIM_CARD
*1×HDMI
*1×RJ-45
*2×USB2.0
*1×Audio-out
Internal I/O Connectors
*1×Full Mini-PCIe (for USB+PCIe+4G)
*1×F_IR
*1×F_Audio
*1×F_Mic in
* 1 × 3Pin S/PDIF port
* 1×30Pin LVDS port
* 1×4Pin VOL+ &VOL-
* 1×4Pin SYS FAN
* 1×4Pin Speaker port
* 1×6Pin COM port（RS232）
* 1×6pin COM port（TTL）
* 3×USB2.0
Form Factors
120mm*120mm
Operating System
Android5.2
Environment
0℃~60℃
System Management
*RTC Timer Power-On
*Watch Dog Timer
*Wake-On-Lan
*Auto Power-On
