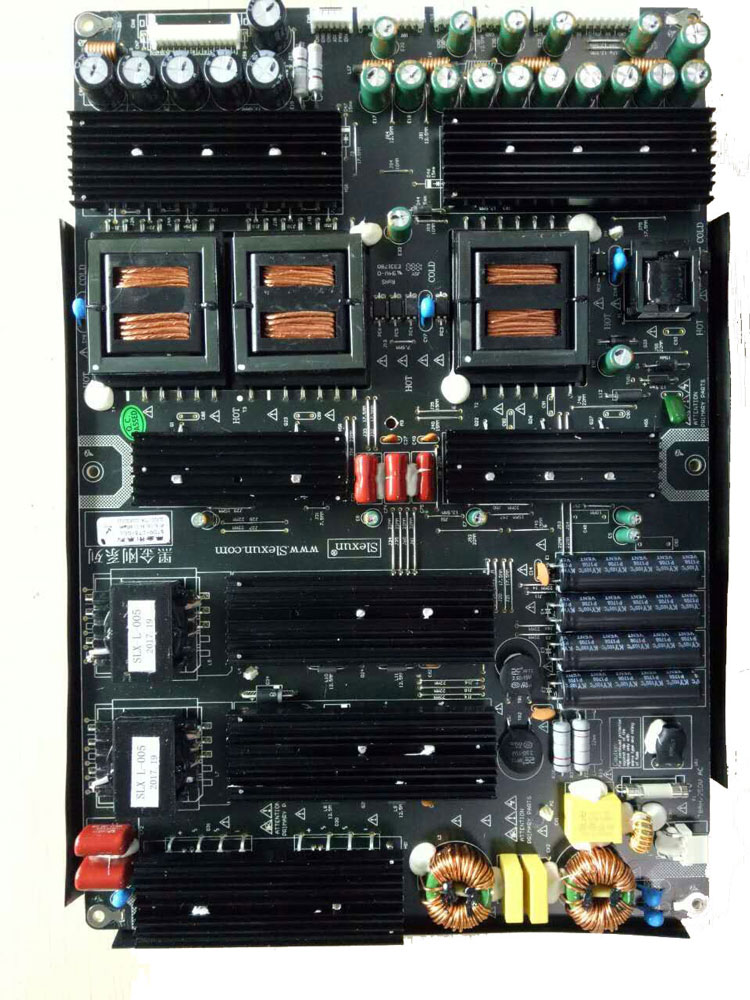

| 产品型号：黑金刚系列/S700-L65-001(468.5W) |
| 产品参数SPECIFICATIONS： |
| ● 输入电压: 90Vac to 264Vac |
| ● 输入电流: 5.5A Max. |
| ● 输入频率: 50Hz/60Hz |
| ● 输出电压:18V/12V/5V/5VSB/LED:105-125V |
| ● 输出电流:7A/7A/3A/0.5A/LED:1.5A |
| ● 纹波及杂讯:300mV max. |
| ● 空载损耗功率: ≦0.5W |
| ● 转换效率:>80% |
| ● 电压调整率/负载调整率:±5% |
| ● 耐压测试:3000Vac 50Hz 1minute ≤10mA |
| ● 漏电流: Less Than 0.35mA, 230Vac input |
| ● 具有过流,过压,过温,短路等保护功能 |
| ● 工作温度: -0℃ to +40℃. |
| ● 相对湿度: 10～90%RH |
| ● 安规标准:1)UL60950/UL60065/EN60950/EN60065/GB4943-1995/GB8898-2001 |
| ● 电磁兼容标准:EN55022 CLASS B/GB9254 CLASS B/FCC PART15 CLASS B |
| ● 外形尺寸：(L)320mm*(W)220mm *(H)15mm |
| ● 重量：* |
| Output Voltage 输出电压 | Regulation 调整率 | Min current 最小电流 | Rated current 额定电流 | Peak current 峰值电流 |
| +5VSB | ±5% | 0.01A | 0.5A | *1.0A |
| +5V | ±5% | 0.2A | 3.0A | *3.5A |
| +12V | ±10% | 0.5A | 1.0-7.0A | *8.0A |
| +18V | ±10% | 0.3A | 1.0-7.0A | *8.0A |
| LED+ (105-115-125V) | ±10% | 0.0A | 1.5A | *1.65A |
